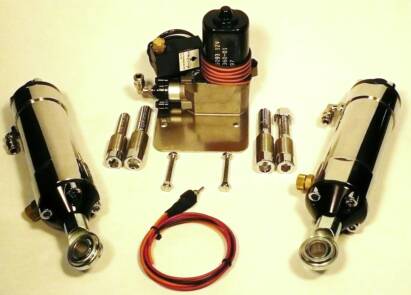

The rear air-suspension kit for the Honda VTX is shared by both the 1800 and 1300. This kit features two of our stainless steel rear shocks and comes complete with onboard air-compressor/solenoid,bolts,spacers and 3-way momentary switch.
You will need to cut off the shock mount on the right side of your swingarm and drill it to half inch. A new nut and bolt is supplied with the kit. 4 spacers for the shocks are also included.
The shocks come out of the box with a center hole to center hole measurement of 10 inches. This measurement can be altered several different ways. First by adjusting the rod ends or calling Tricky Air & Billet for different size spacers which go between the top mount and shock body.
One of the reason why Tricky Air & Billet's air-suspension is so widely used is our rebound control. The gold hand adjustable fitting controls the rate of air coming and going out of the second chamber. With this rate at the control of your finger tips you can now soften or firm up the ride according to the way you drive or road conditions.
