Harley Davidson 99 & Down rear air suspension kit

The HD 99 & down rear suspension kit is made of our 304 stainless steel shocks with T-6 6061 billet aluminum frame mounts. The opposite side the the shock has 5/8 spyrical rod ends on the swingarm mount for side to side aligment. The kit comes complete with on-board air compressor,solenoid,hosing and 3-way momuntary toggle switch. The shock will also come with 4 oem style shoulder bolts.

Installation tips;
The x4 OEM style shoulder bolts have a .5 of an inch of clearance so the shocks can find there own location. This is after they have been completely tightnen.
Measurements;
The shocks come out of the box with a center hole to center hole measurment of 12.25. This measurement can be altered several different ways. First by ajusting the rod ends or calling Tricky Air & Billet for different size spacers which go between the top mount and shock body.
Rebound adjustabilty
One of the reason why Tricky Air & Billet's air-suspension is so widely used is our rebound control. The gold hand adjustable fitting controls the rate of air coming and going out of the secound chamber. With this rate at the control of your finger tips you can now soften or firm up the ride according to the way you drive or road conditions.
Price;
Black Option...................$1275.00
Chrome Option................$1435.00

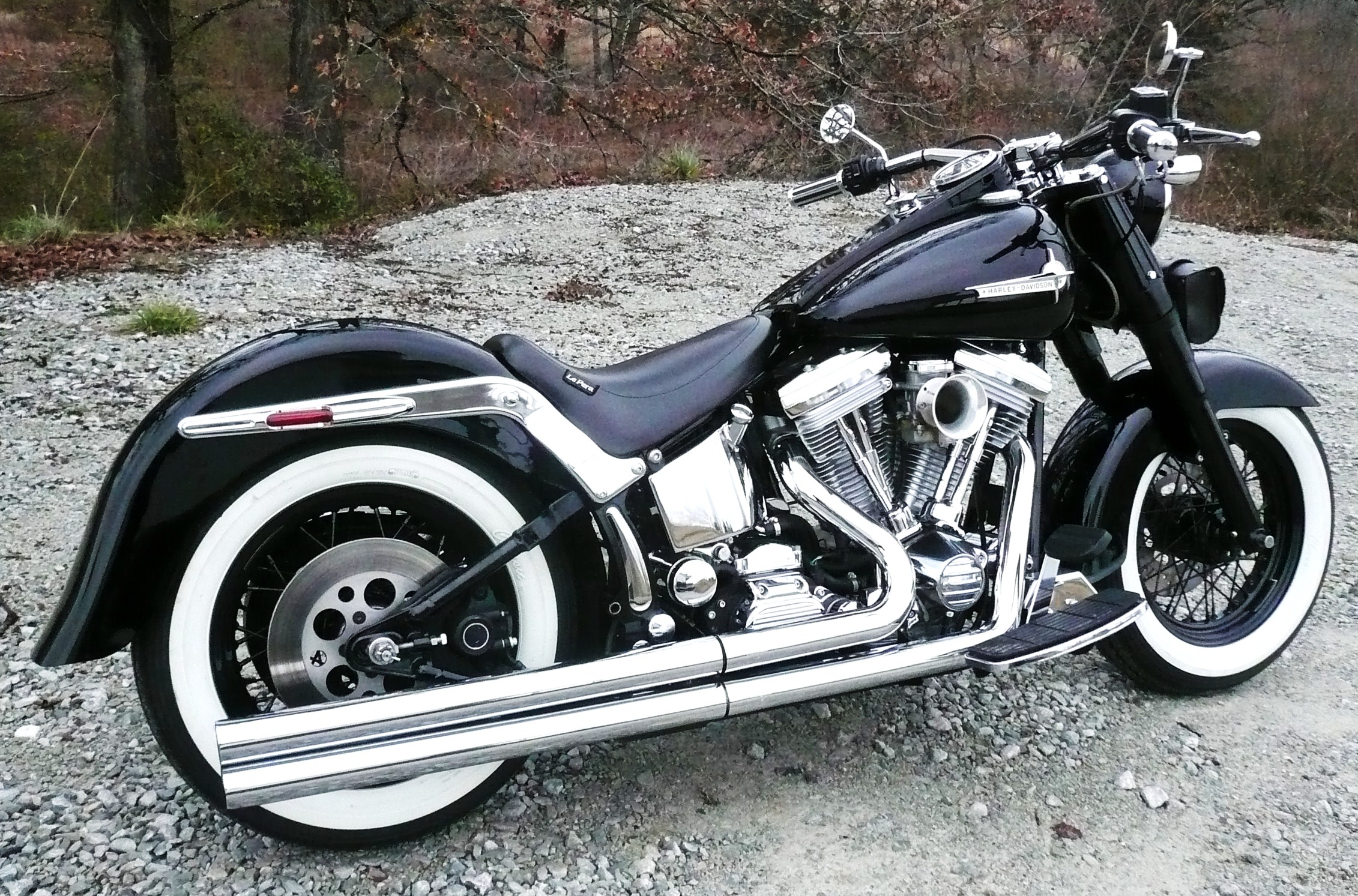

UP

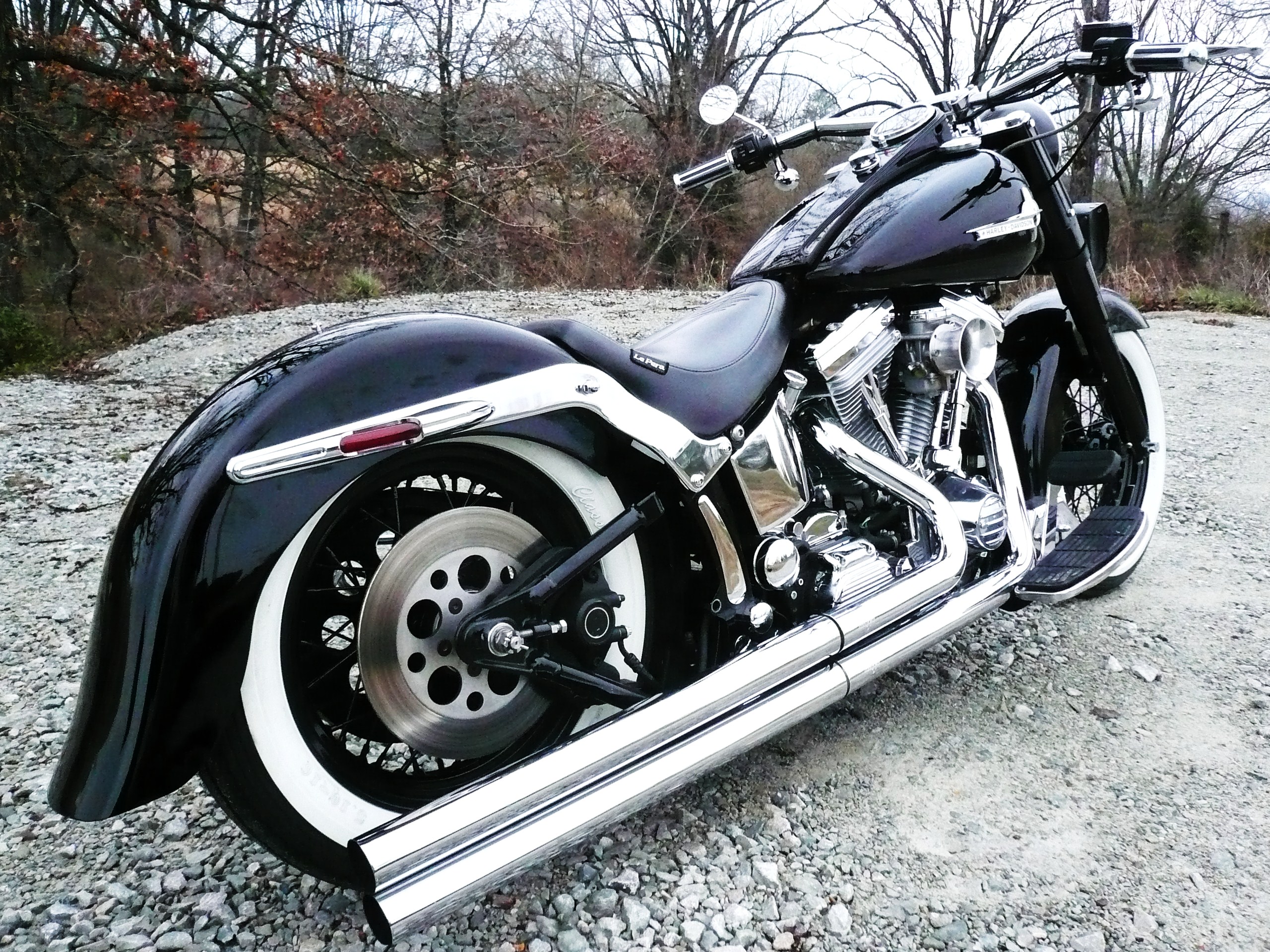

Down
